24 VAC Digital Multiplexer EXL05110 |
|
The 24 VAC digital multiplexer will read four 24 VAC inputs and output single resistance from 0-750 ohms corresponding to each input (1 adds 50 ohms, 2 adds 100 ohms, 3 adds 200 ohms and 4 adds 400 ohms) for measurement with a Building Automation controller for demultiplexing.
|
|
|
|
Your Price: $38.12 |
 |
|
 |

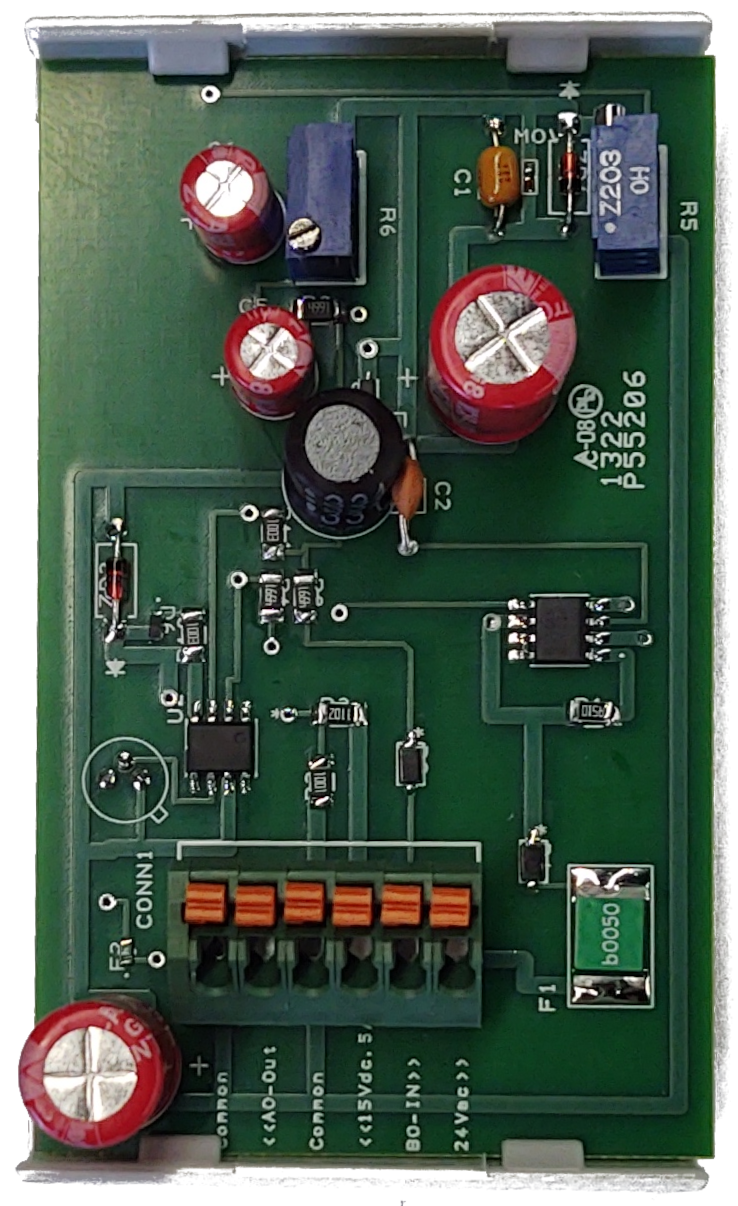

EXL05011 Binary Output (BO/DO) to Analog Converter (AO) |
|
The 24Vac digital output (BO / DO) to analog output (AO) converter will convert a Pulse Width Modulation (0-1 second) binary 24Vac signal into a 0-10Vdc analog output signal. The control board is powered by 24Vac. There is a 15Vdc power supply output at a maximum of 250 mA. Accuracy is 0-10Vdc +/- .1Vdc. Linearity is percent of 1 second 24Vac signal to 0-10Vdc +/- .8Vdc. The output is Independent of Load and can supply a maximum of 30mA.
|
|
|
|
Your Price: $76.62 |
|
|
 |
24 VAC Voltage Measurement EXL05010 |
|
The 24 VAC voltage measurement interface will measure four 0-24 VAC inputs and output a corresponding 0-5.1 VDC or 0-3.2 VDC signal for direct measurement with a meter or Building Automation controller. Uses 24 VAC measurement or Wet contact conversion to a binary input.
|
|
|
|
Your Price: $38.12 |
|
|
 |

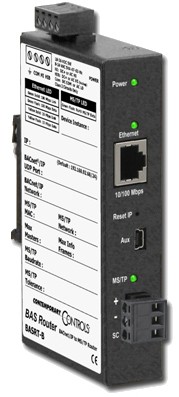

EXL00610 BACnet MS/TP to Ethernet BAS Router |
The BACnet BAS Router provides stand-alone routing between BACnet networks such as BACnet/IP, BACnet Ethernet, and BACnet MS/TP.
|
|
|
|
Your Price: $459.59 |
|
|
 |
EXL00611 BACnet MS/TP to WiFi Ethernet BAS Router |
The BACnet BAS Router provides stand-alone routing between BACnet networks such as Ethernet WiFi 2.4Ghz+5Ghz Dual Band, Wired BACnet IP, Wired BACnet Ethernet and BACnet MS/TP.
|
|
|
|
Your Price: $465.06 |
|
|
 |
EXL00613 BACnet MS/TP to Ethernet High Performance BAS Router |
The BACnet High Performance BAS Router provides stand-alone routing between BACnet networks such as BACnet/IP, BACnet Ethernet, and BACnet MS/TP.
|
|
|
|
Your Price: $553.50 |
|
|
 |
EXL00614 Wireless Data Modem with BACnet MS/TP for WEBHosted Service |
The Wireless Data Modem and BACnet MS/TP Router provides a BACnet data connection from your BACnet MS/TP devices to our servers for use with our WEBHosted services. WEBHosted Software As A Service (SAAS) provide graphical displays of your building controllers grouped together to provide a single location for all of your buildings. Annual service fees are based on the number of connected devices. The battery backup provides power to the Data Modem and the BACnet Router and to your 24Vdc connected devices up to 80 VA maximum.
|
|
|
|
Your Price: $2,821.00 |
|
|
 |
EXL00612 BACnet 2x MS/TP to Ethernet BAS Router |
The BACnet BAS Router provides stand-alone routing between BACnet networks such as BACnet/IP, BACnet Ethernet, and BACnet MS/TP. The Router has one Ethernet port and two MS/TP ports.
|
|
|
|
Your Price: $368.62 |
|
|
 |
EXL05000 BACnet Communication Wire |
22 AWG 2 Conductor Tinned Copper BACnet communications Wire
Shielded Plenum Low-Capacitance UL Listed C(UL)US CMP or FPLP (UL)
1 box is 1000 feet
|
|
|
|
Your Price: $304.16 |
|
|
 |
EXL05001 18 gage 2 conductor wire 1000 Ft |
| 18 AWG 2 Conductor Tinned Copper Power or Sensor Wire
Plenum Shielded UL Listed C(UL)US CMP or FPLP (UL)
1 box is 1000 feet
|
|
|
|
Your Price: $214.11 |
|
|
|
